Download as PDF

General
Hull Material Aluminum
Build 2012
Superstructure FRP
Basic Functions Crew and Pilot duties
Classification Bureau Veritas
Notation I ✠ Hull • MACH
Type Light Ship / Fast Utility Vessel
Sea Area 2

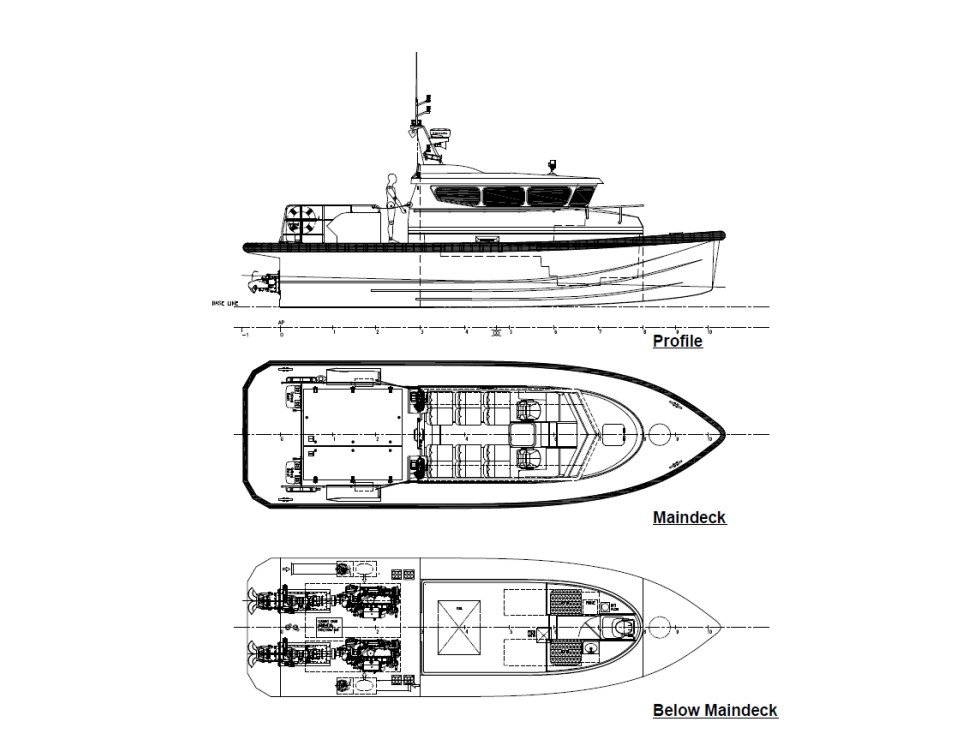

Deck layout
Anchor Equipment 1 × 20 kg HHP with chain and line
Fendering 230 mm × 115 mm D‑shaped foam filled fender

Dimensions
LOA 13.72 m
Breadth (B) 3.76 m
Draft (T) 1.07 m
Displacement 18 tonnes
Life Saving Equipment
Life Buoys 2
Life Jackets Based on persons onboard
Life Rafts 1 × 16 persons

Capacities
Fuel Oil 0.87 m³
Fresh Water 0.08 m³
Sewage 0.03 m³
Max. Deck Load 0.50 t
Crew 2 persons
Auxiliary Equipment
Engine Room Ventilation 2 × 1500 m³/h
General Service Pumps Electrically driven, 24V, Azcue CA 40
Cathodic Protection Installed

Performances
Speed 21 knots
Range 150 nm at max speed
Accommodation
Below Main Deck Pantry, toilet & 2 bunks
Main Deck 12 Seats
Air-conditioning 24,000 BTU

Propulsion system
Main Engines 2 × Caterpillar TA 3208 (2 × 315 BHP)
Auxiliary Power 1 × Cummins Onan MDKDP (13.5 kVA)
Propulsion 2 × FPP
Max Speed 12 knots
FO Capacity 1100 liters
FW Capacity 200 liters
Range 150 nm
Nautical, Surveillance & Communication Equipment
Searchlight 1 × 250W 24V
Compass Magnetic
Echo Sounder Installed
Radar Installed
Electrical Equipment
Electrical Network 24V d.c.; 230V 50 Hz
Generator Set 1 × Onan 4.0 MDKBM
Capacity 4.0 kW, 5.0 kVA
